SCALABLE QUICK CHARGERS

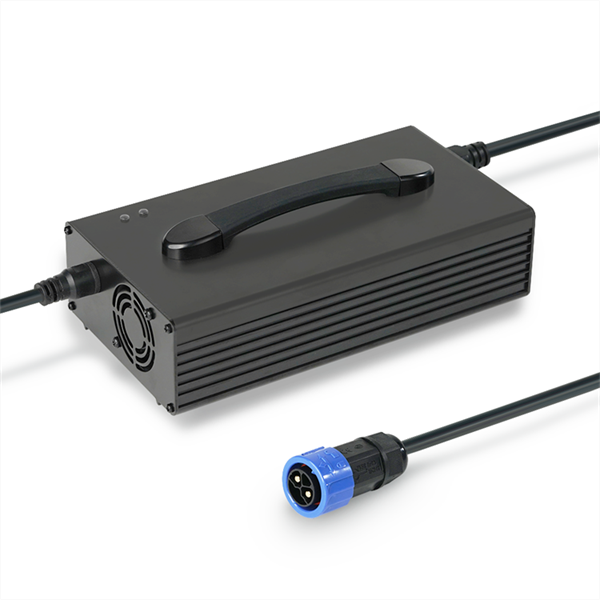

Superpower lithium 1260W chargers for home or office use, the scalable [Quick Charger" system can more than double charging speeds (dramatically reducing charging times) for Electric motorcycle. The system uses stand-alone (off-board)1260W chargers that work in conjunction with the motorcycle`s standard (on-board) charger.
Item No | Nominal voltage | Output Voltage | Max. output current |
SPC-294400 | 24V | 25.2~29.4V | 40A |
SPC-588200 | 48V | 54.6~58.8V | 20A |
SPC-730170 | 60V | 67.2~73V | 17A |
SPC-876150 | 72V | 84~87.6V | 15A |
Reliability
The housing is constructed using an aluminium alloy shell with a built-in heat sink module. Highly reliable
product engineering and proven over many years in the industry, the charger can be adapted to harsh
operating environments.
Safety
The use of new technologies such as active PFC and LLC; reliable hardware protection and voltage and current self-test protection; perfect charging strategy to ensure a highly safe and reliable charging process.
Smart
Support RS485 and CAN, customize communication protocols to meet the customer's charging needs for
various occasions.
Dimensions Weight & Temperature
Net weight: about 2.5 kg
Operating temperature:-20℃-40℃
Storage temperature:-20℃-85℃
